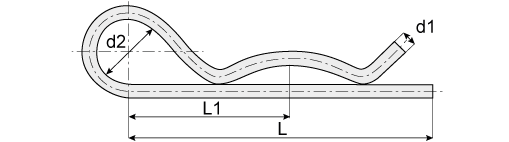

Cotter pins single
| d1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| For shaft Ø | 9-14 | 10-16 | 16-20 | 20-28 | 28-40 | 28-45 | 30-45 |
| d2 | 10 | 18 | 20 | 24 | 30 | 30 | 34 |
| L | 50 | 60 | 60 | 85 | 105 | 105 | 110 |
| L1 | 25 | 28 | 30 | 40 | 50 | 50 | 55 |
| drill Ø | 2.5 | 3.5 | 4.5 | 6 | 7 | 8 | 9 |
