Self-cutting threaded inserts, for wood and soft plastics
Self-cutting brass thread insert for wood and soft plastic.

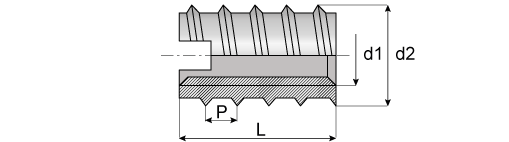

Type 309
| d1 | M3 | M3,5 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
|---|---|---|---|---|---|---|---|---|---|
| P | 1.6 | 1.6 | 2.5 | 3 | 4 | 4 | 5 | 5 | 5 |
| d2 | 5.5 | 6.5 | 7 | 9 | 10 | 13 | 16 | 19 | 24 |
| L | 6 | 8 | 10 | 12 | 14 | 20 | 23 | 26 | 26 |
| Min. drilling depth | 8 | 10 | 13 | 15 | 17 | 23 | 26 | 30 | 30 |
| drill Ø | |||||||||
| soft Wood ≥ | 4.1 | 4.6 | 5.1 | 6.6 | 7.6 | 9.9 | 12.4 | 15.4 | 20.4 |
| Hard wood / plastic | 4,2-4,3 | 4,7-4,8 | 5,2-5,3 | 6,7-6,9 | 7,7-7,9 | 10,1-10,3 | 12,6-12,8 | 15,6-15,8 | 20,6-20,8 |
