Hex socket set screws with cone point, ISO 4027

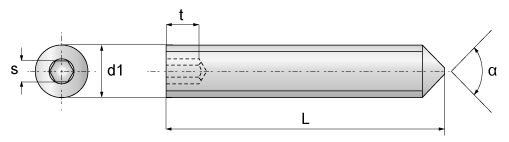

Hex socket set screws with cone point.
| d1 | M2 | M2,5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| s | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| A 120 ° up to length | 3 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 25 | |
| other lengths 90° | ||||||||||||
| t min | 2 | 2 | 2.5 | 3 | 3.5 | 5 | 6 | 8 | 10 | 12 | 15 |
