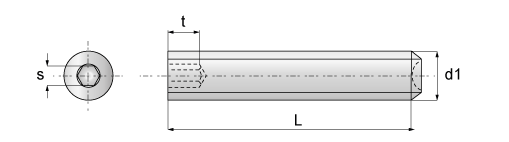

Hex socket set screws with cup point, ISO 4029
Hex socket set screws with cup point
| d1 | M1,6 | M2 | M2,5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | 0,55-0,8 | 0,75-1 | 0,95-1,2 | 1,15-1,4 | 1,75-2 | 2,25-2,5 | 2,75-3 | 4,7-5 | 5,7-6 | 7,64-8 | 8,69-9 | 9,64-10 | 13,57-14 | 15,57-16 |
| s | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 6 | 8 | 10 | 12 |
