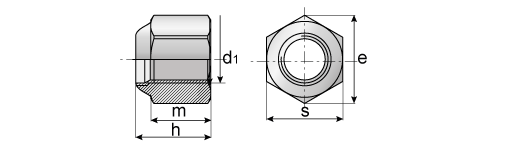

Prevailing torque type hex lock nuts high type with polyamide insert, DIN 982
| d1 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | 6.3 | 8 | 9.5 | 11.5 | 14 | 16 | 18 | 20 | 22 | 25 | 28 |
| e min | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 |
| s | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| m | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 |
