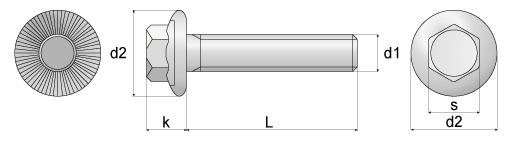

Hex serrated flange screws
Hexagonal bolts with toothed flange
d1 | M5 | M6 | M8 | M10 | M12 |
---|---|---|---|---|---|
d2 | 11.2 | 14.2 | 18.2 | 21 | 24 |
k | 4.3 | 5.5 | 7 | 8.5 | 10 |
s | 8 | 10 | 13 | 15 | 17 |
Hexagonal bolts with toothed flange
d1 | M5 | M6 | M8 | M10 | M12 |
---|---|---|---|---|---|
d2 | 11.2 | 14.2 | 18.2 | 21 | 24 |
k | 4.3 | 5.5 | 7 | 8.5 | 10 |
s | 8 | 10 | 13 | 15 | 17 |
