Wall plugs nylon
Application area: For use in most materials: concrete, aerated concrete, hollow and solid bricks.
Description: The design of the plugs allows for directional expansion and provides great tensile and compression strength.
Material properties conserved at temperatures from -40°C to +80°C.

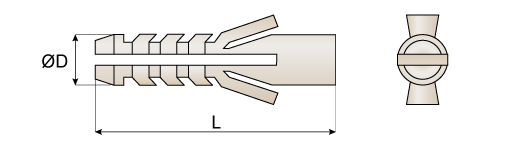

| Dimension | drill (mm) | Min. drilling depth (mm) | Screw (mm) |
|---|---|---|---|
| 04x20 | 4 | 25 | 2-3 |
| 05x25 | 5 | 30 | 2,5-4 |
| 06x30 | 6 | 40 | 3,5-5 |
| 08x40 | 8 | 50 | 4,5-6 |
| 10x50 | 10 | 60 | 6-8 |
| 12x60 | 12 | 70 | 8-10 |
| 14x70 | 14 | 80 | 10-12 |
| 16x80 | 16 | 90 | 12-14 |
| 20x90 | 20 | 100 | 16 |
