Adjustment rod

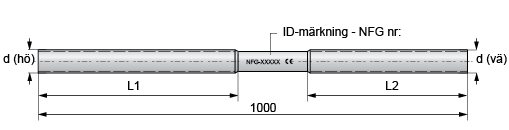

The adjustment rods function in our tension rod system is to enable alignment and tighten the tension rod. The adjustment rod is threaded with both right-hand and left-hand threads and is used in combination with the turnbuckle. CE marked and Basta registrerat.
Hot-dip galvanization: ISO 10684: 2004
Mechanical properties: ISO 898-1: 2013
Thread tolerance: ISO fit
Impact toughness: 27J at -20°C
Cut to the desired length.
ID marked for enhanced traceability.
For the design load of the tension rod system, refer to the handling sheet.
