Hex head bolts fully threaded DIN 933
Fully-threaded hexagon bolts M6S. Strength class 8.8. Available untreated, in BZP, HDG, and stainless steel and acid-resistant material. Standards ISO 4017 and DIN 933.

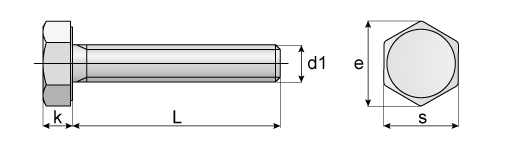

| d1 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M24 | M27 | M30 | M33 | M36 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| e | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 |
| k | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 15 | 17 | 18.7 | 21 | 22.5 |
| s | 7 | 8 | 10 | 13 | 17* | 19* | 22* | 24 | 27 | 30 | 36 | 41 | 46 | 50 | 55 |
| Thread pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 |
