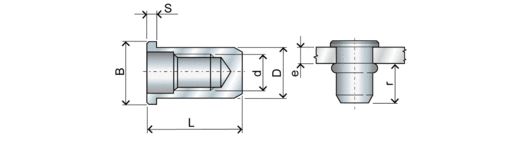

Steel threaded insert cylindrical head closed end
Cylindrical head, closed end
| d 6H | M3 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|
| Finish | BZP/ALU | BZP/ALU | BZP/ALU | BZP/ALU | BZP/ALU | BZP |
| r max | 11,0/11,2 | 12,8/13,0 | 14 | 15,5/15,7 | 19,3/19,4 | 23,0 |
| hole Ø | 5 | 6 | 7 | 9 | 11 | 12 |
| D | 4.9 | 5.9 | 6.9 | 8.9 | 10.9 | 11,9 |
| B | 7 | 9 | 10 | 12 | 15 | 16 |
| S | 0.8 | 1 | 1.2 | 1.5 | 1.5 | 1,7 |
