Rock eye peg
Hot-dip galvanised,
fully forged rock bolt for anchoring in rock. Supplied with wedge. The rock
bolt is fixed in pre-drilled holes by hammering down with the wedge in the
base, which then makes the rod expand and lock the fastening in place.

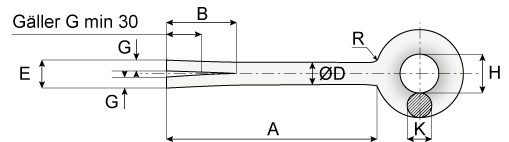

| D | L | B | Emax | G | H | K | R | Bergborr med mejselskär mm |
|---|---|---|---|---|---|---|---|---|
| 18+1/-0,5 | 175±5 | 60±3 | 22 | 9+0,8/-0,3 | 27±1 | 18±1 | 10+2/-5 | 23 |
| 25+1/-0,5 | 250±10 | 85+6/-0 | 28 | 11,5+1,5/-0,5 | 30±1 | 25±1 | 10+2/-5 | 29 |
