Hex head bolts partially / fully threaded, ISO 4014/4017

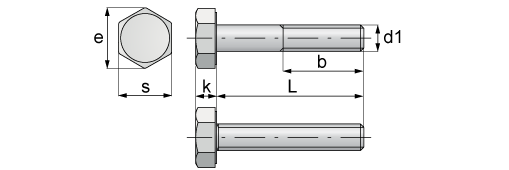

Hexagon bolts M6S. ISO 4017 Fully-threaded, ISO 4014 Partially threaded. Width across flats acc. to ISO standard.
| d1 | M10 | M12 | M14 | M22 |
|---|---|---|---|---|
| bL< 125 | 26 | 30 | 34 | 50 |
| bL>125<200 | 32 | 36 | 40 | 56 |
| bL>200 | 45 | 49 | 53 | 69 |
| e | 17.77 | 20.03 | 23.36 | 37.72 |
| k | 6.4 | 7.5 | 8.8 | 14 |
| s | 16 | 18 | 21 | 34 |
| Thread pitch | 1.5 | 1.75 | 2 | 2.5 |
