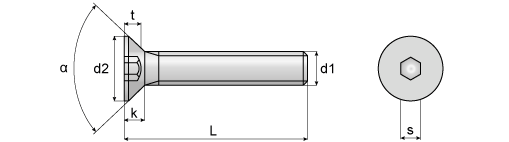

Hex socket flat countersunk head screws 8.8, ISO 10642
Hex socket flat countersunk head screws Strength class 8.8
| d1 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 27 | 30 | 36 | 39 |
| k | 1.7 | 2.3 | 2.8 | 3.3 | 4.4 | 5.5 | 6.5 | 7 | 7.5 | 8.5 | 14 |
| s | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 14 |
| t | 1.2 | 1.8 | 2.3 | 2.4 | 3.5 | 4.4 | 4.6 | 4.8 | 5.3 | 5.9 | 10.3 |
| a | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 60° | |
| Full thread length up to L | 20 | 25 | 30 | 35 | 40 | 40 | 50 | 50 | 60 | 70 | 90 |
| nom. thread length b | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 467 | 54 |
