Beam Clamp Overview
You must log in to access this file.
BeamClamp Type BA
Authorized reseller for region: Sweden, Norway, Denmark

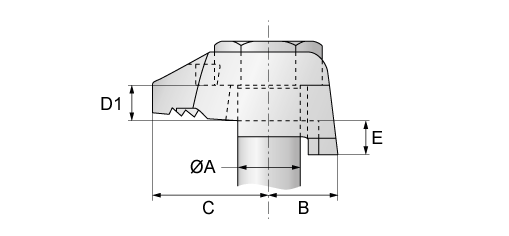

| Description | A Screw dia. (8.8) | B (mm) | C (mm) | D1 (mm) | Width (mm) | Torque (Nm) | tensile force SWL (kN) / screw (5:1 Safety factor) | Friction SWL (kN) /4 screws (5:1 Safety Factor) |
|---|---|---|---|---|---|---|---|---|
| BA 10 | M10 | 12 | 20 | 6 | 26 | 20 | 2.5 | / |
| BA 12 | M12 | 15 | 25.5 | 7 | 29.5 | 70 | 5.75 | 1.3 |
| BA 16 | M16 | 17 | 31 | 9 | 36 | 150 | 9.87 | 3.9 |
