SPAX Chipboard screw pan head TORX
The ETA approval only applies to products with the CE
logo on the product line.
TKT | ||||||
---|---|---|---|---|---|---|

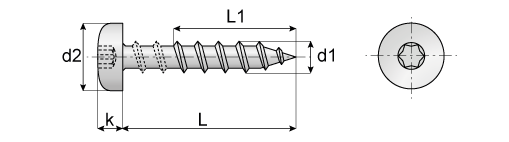

d1 | 3 | 3.5 | 4 | 4.5 | 5 | 6 |
d2 | 6 | 7 | 8 | 9 | 10 | 12 |
k max. | 2.4 | 2.5 | 2.9 | 3.2 | 3.5 | 4.1 |
Bits T-star | T10 | T15 | T20 | T20 | T20 | T30 |
