Beam Clamp Overview
You must log in to access this file.
Authorized reseller for region: Sweden, Norway, Denmark

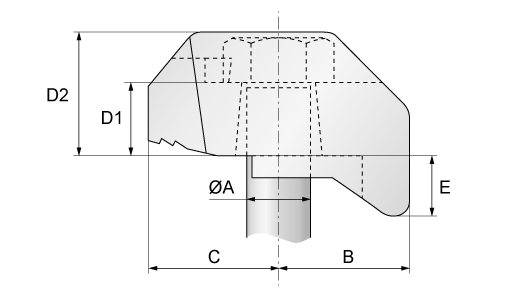

Description | Strength | A Screw dia. (8.8) | B (mm) | C (mm) | D1 (mm) | D2 (mm) | Width | Torque (Nm) | tensile force SWL (kN) / screw (5:1 Safety factor) | Friction SWL (kN) /2 screws painted steel (2:1 Safety factor) |
---|---|---|---|---|---|---|---|---|---|---|
BY 12 | 8.8 | M12 | 27 | 28.5 | 13 | 23 | 40 | 90 | 11.65 | 4.29 |
BY 16 | 8.8 | M16 | 33 | 33 | 17 | 30 | 49 | 240 | 19.41 | 8.02 |
Pack size | Number of packages | Total number |
---|---|---|
{{article.itemsPerPackage}} st/pack |
|
|
