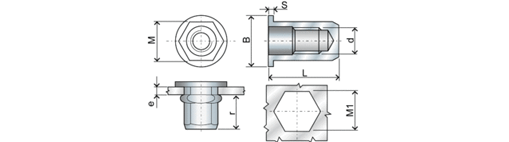

Steel threaded insert cylindrical head hexagonal shank closed end
Hexagonal, closed end
d 6H | M4 | M5 | M6 | M8 |
---|---|---|---|---|
r min÷max | 10÷10,5 | 13,2÷13,7 | 15÷16 | 18,8÷19,5 |
M1 | 9 | 7 | 9 | 11 |
M | 5.9 | 6.9 | 8.9 | 10.9 |
B | 9 | 10 | 13 | 16 |
S | 1 | 1 | 1.5 | 1.5 |
Hexagonal, closed end
d 6H | M4 | M5 | M6 | M8 |
---|---|---|---|---|
r min÷max | 10÷10,5 | 13,2÷13,7 | 15÷16 | 18,8÷19,5 |
M1 | 9 | 7 | 9 | 11 |
M | 5.9 | 6.9 | 8.9 | 10.9 |
B | 9 | 10 | 13 | 16 |
S | 1 | 1 | 1.5 | 1.5 |
