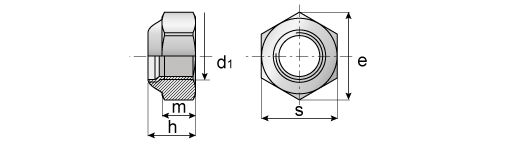

Prevailing torque type Hex lock nuts thin type, with polyamide insert,Metric fine thread DIN 985
| d1 | MF8x1 | MF10x1 | MF10x1,25 | MF12x1 | MF12x1,25 | MF12x1,5 | MF14x1,5 | MF16x1,5 | MF18x1,5 | MF20x1,5 | MF22x1,5 | MF24x2 | MF30x2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| e min | 14.38 | 18.9 | 18.9 | 21.1 | 21.1 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 50.85 |
| h max | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 16 | 18.5 | 20 | 22 | 24 | 30 |
| m | 5.5 | 6.5 | 6.5 | 8 | 8 | 8 | 9.5 | 16 | 18.5 | 20 | 22 | 24 | 30 |
| s | 13 | 17 | 17 | 19 | 19 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 46 |
