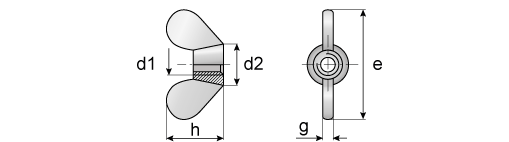

Wing nuts, DIN 315
| d1 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|
| d2 max | 8 | 11 | 13 | 16 | 20 | 23 | 28 | 29 | 35 | 44 |
| e max | 20 | 26 | 33 | 39 | 51 | 65 | 72 | 73 | 90 | 110 |
| g max | 1.9 | 2.3 | 2.3 | 2.8 | 4.4 | 4.9 | 6 | 6.4 | 6.9 | 9.4 |
| h max | 10.5 | 13 | 17 | 20 | 25 | 33.5 | 36 | 37.5 | 46.5 | 56.5 |
