Screwed inserts for wood applications, with socket head

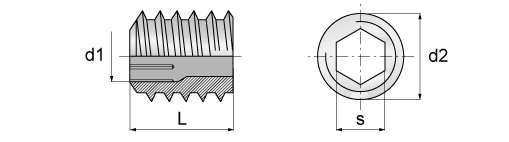

Screwed insert with hexagonal hole. For installation in wood. A thread insert with external wood thread and internal machine thread. DIN 7965
| d1 | M4 | M4 | M5 | M5 | M5 | M6 | M6 | M6 | M6 | M8 | M8 | M8 | M8 | M8 | M10 | M10 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 14 | 14 | 16 | 16 | 16 | 18.5 | 18.5 | 18.5 |
| L | 8 | 10 | 10 | 12 | 14 | 10 | 12 | 15 | 18 | 15 | 18 | 14 | 18 | 23 | 15 | 20 | 25 |
| s | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 |
| Ø | 6.9 | 6.9 | 8.9 | 8.9 | 8.9 | 10.4 | 10.4 | 10.4 | 10.4 | 12.4 | 12.4 | 14.5 | 14.5 | 14.5 | 16.7 | 16.7 | 16.7 |
