Steel threaded insert reduced head half hexagonal shank

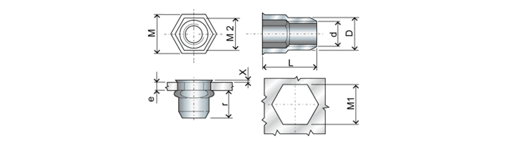

Partially threaded hexagonal, reduced head
| d 6H | r min÷max | M1 | M | M2 | X | D |
|---|---|---|---|---|---|---|
| M4 | 6,5÷6,8 | 6.4 | 6.3 | 7 | 0.4 | 6.3 |
| M5 | 6,5÷6,7 | 7.3 | 7.3 | 8 | 0.4 | 7.1 |
| M6 | 9,4÷9,6 | 9.7 | 9.7 | 10.4 | 0.4 | 9.5 |
| M8 | 10,2÷10,6 | 10.7 | 10.7 | 11.6 | 0.4 | 10.5 |
