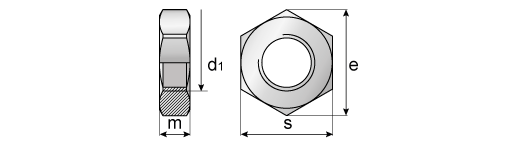

Hex jam nuts ~0,5d, ISO 4035/DIN 439
The dimensions M10, M12, M14 and M22 have key widths according to DIN standards. If a key width according to the ISO standard is desired, these can be found under product group 1477.
| d1 | M2 | M2,5 | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M42 | M48 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| e min | 4.32 | 5.45 | 6.01 | 7.66 | 8.79 | 11.05 | 11.94 | 14.38 | 18.39 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 71.3 | 82.6 |
| s | 4 | 5 | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 65 | 75 |
| m max | 1.2 | 1.6 | 1.8 | 2.2 | 2.7 | 3.2 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 | 16.5 | 18 | 21 | 24 |
