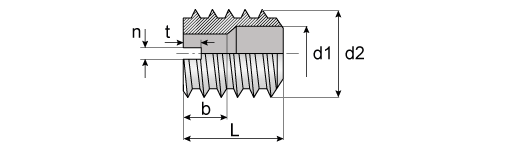

Screwed inserts for wood applications, with groove for chips
Screwed insert with
groove. For installation in wood. A thread insert with external wood
thread and internal machine thread.
| d1 | M3 | M4 | M4 | M4 | M5 | M5 | M5 | M6 | M6 | M6 | M8 | M8 | M8 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 16 | 16 | 18.5 |
| L | 8 | 8 | 10 | 12 | 10 | 12 | 15 | 12 | 15 | 20 | 15 | 18 | 18 | 23 | 20 |
| b | 5 | 5 | 6 | 6 | 7 | 7 | 7 | 9 | 9 | 9 | 10 | 10 | 11 | 11 | 13 |
| t | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| n | 1.2 | 1.2 | 1.2 | 1.2 | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Ø | 4.9 | 6.1 | 6.1 | 6.1 | 8 | 8 | 8 | 9.9 | 9.9 | 9.9 | 11.9 | 11.9 | 13.3 | 13.3 | 15.8 |
