Winged screw for fixing fibre boards

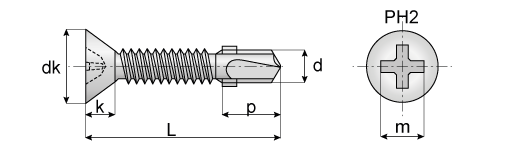

Winged plate screw for fixing wood to steel, self-tapping.
d | 4.2 | 4.8 | 5.5 | 6.3 |
---|---|---|---|---|
dk | 8.1 | 9.5 | 10.8 | 12.4 |
k ~ | 2.5 | 3 | 3.4 | 3.8 |
m | 4.7 | 5.1 | 6.8 | 7.1 |
p max | 9.2 | 11.2 | 12.2 | 13.2 |
Bit No. | 2 | 2 | 3 | 3 |
Max. steel thickness | 3 | 4.4 | 5.25 | 6 |
Winged plate screw for fixing wood to steel, self-tapping.
d | 4.2 | 4.8 | 5.5 | 6.3 |
---|---|---|---|---|
dk | 8.1 | 9.5 | 10.8 | 12.4 |
k ~ | 2.5 | 3 | 3.4 | 3.8 |
m | 4.7 | 5.1 | 6.8 | 7.1 |
p max | 9.2 | 11.2 | 12.2 | 13.2 |
Bit No. | 2 | 2 | 3 | 3 |
Max. steel thickness | 3 | 4.4 | 5.25 | 6 |
