Rampa® insert type SKD30
RAMPA inserts type SKD30 with sealing collar, hex drive, unthreaded lead and patented 1-start external thread contour for simplified assembling in wood, wood-based materials and thermoplastics.

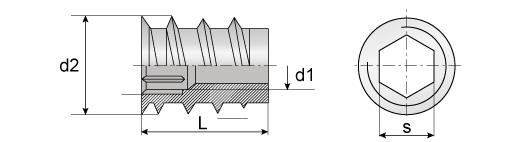

| d1 | M4 | M4 | M4 | M5 | M6 | M6 | M6 | M8 | M8 |
|---|---|---|---|---|---|---|---|---|---|
| d2 | 8 | 8 | 8 | 10 | 12 | 12 | 12 | 14 | 14 |
| L | 8 | 10 | 12 | 12 | 12 | 15 | 18 | 15 | 18 |
| s | 4 | 4 | 4 | 5 | 6 | 6 | 6 | 8 | 8 |
| Ø | 7,0 | 7,0 | 7,0 | 9,0 | 10,0-10,5 | 10,0-10,5 | 10,0-10,5 | 12,0-12,5 | 12,0-12,5 |
