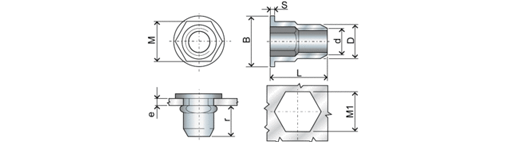

Steel threaded insert cylindrical head half hexagonal shank
Partially threaded hexagonal, flat head
d 6H | M4 | M5 | M6 | M8 | M10 |
---|---|---|---|---|---|
r min÷max | 5÷5,5 | 7,2÷7,7 | 9,3÷9,7 | 10,8÷11,5 | 15,5÷16 |
M1 | 6 | 7 | 9 | 11 | 13 |
M | 5.9 | 6.9 | 8.9 | 10.9 | 12.9 |
B | 9 | 10 | 13 | 16 | 19 |
S | 1 | 1 | 1.5 | 1.5 | 2 |
Partially threaded hexagonal, flat head
d 6H | M4 | M5 | M6 | M8 | M10 |
---|---|---|---|---|---|
r min÷max | 5÷5,5 | 7,2÷7,7 | 9,3÷9,7 | 10,8÷11,5 | 15,5÷16 |
M1 | 6 | 7 | 9 | 11 | 13 |
M | 5.9 | 6.9 | 8.9 | 10.9 | 12.9 |
B | 9 | 10 | 13 | 16 | 19 |
S | 1 | 1 | 1.5 | 1.5 | 2 |
