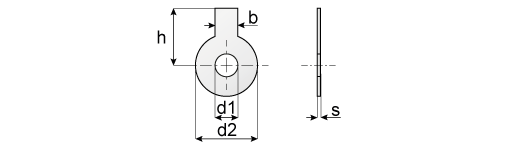

Tabwashers with 1 tab DIN 93
| d1 | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 50 | 54 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | 12 | 14 | 17 | 19 | 22 | 26 | 30 | 33 | 36 | 40 | 42 | 50 | 50 | 58 | 63 | 68 | 75 | 82 | 88 | 95 | 100 | 105 |
| b | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 12 | 15 | 18 | 18 | 20 | 20 | 23 | 26 | 28 | 30 | 32 | 35 | 38 | 40 | 44 |
| s | 0.38 | 0.38 | 0.5 | 0.5 | 0.75 | 0.75 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| h | 13 | 14 | 16 | 18 | 20 | 22 | 28 | 28 | 32 | 36 | 36 | 42 | 42 | 48 | 52 | 56 | 60 | 64 | 70 | 75 | 80 | 85 |
