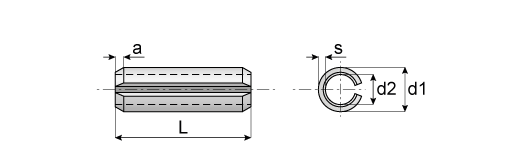

Slotted spring pins ISO 8752
| nom. Ø | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1min | 1.2 | 1.7 | 2.3 | 2.8 | 3.3 | 3.8 | 4.4 | 4.9 | 5.4 | 6.4 | 8.5 | 10.5 | 12.5 | 14.5 | 16.5 | 20.5 |
| ~ d2 | 0.8 | 1.1 | 1.5 | 1.8 | 2.1 | 2.3 | 2.8 | 2.9 | 3.4 | 4 | 5.5 | 6.5 | 7.5 | 8.5 | 10.5 | 12.5 |
| a | 0.15 | 0.25 | 0.35 | 0.4 | 0.5 | 0.6 | 0.65 | 0.8 | 0.9 | 1.2 | 2 | 2 | 2 | 2 | 2 | 3 |
| s | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.75 | 0.8 | 1 | 1 | 1.2 | 1.5 | 2 | 2.5 | 3 | 3 | 4 |
