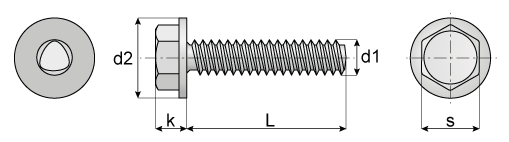

Thread rolling screw, hexagon head with collar DIN 7500~D
Stainless steel self-tapping screws are only suitable for soft materials such as aluminium or materials with HV <110
| d1 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|
| d2 max | 8.9 | 10.4 | 13 | 16.9 | 22.1 |
| k max | 4.23 | 5.25 | 6.25 | 7.2 | 9 |
| s | 7 | 8 | 10 | 13 | 14 |
| n max | 0.65 | 0.8 | 1.05 | 1.2 | 1.35 |
