Steel threaded insert reduced head half hexagonal shank

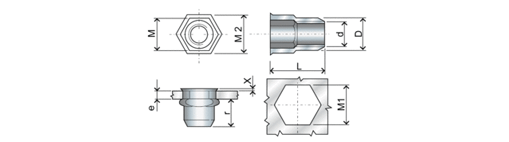

Partially threaded hexagonal, reduced head
d 6H | M4 | M5 | M6 | M8 |
---|---|---|---|---|
r min÷max | 6,5÷6,8 | 6,5÷6,7 | 9,4÷9,8 | 9,5÷10 |
M1 | 6 | 7 | 9 | 11 |
M | 5.9 | 6.9 | 8.9 | 10.9 |
M2 | 6.8 | 8 | 10 | 12 |
X | 0.4 | 0.4 | 0.4 | 0.4 |
D | 5.9 | 6.9 | 8.9 | 10.9 |
Partially threaded hexagonal, reduced head
d 6H | M4 | M5 | M6 | M8 |
---|---|---|---|---|
r min÷max | 6,5÷6,8 | 6,5÷6,7 | 9,4÷9,8 | 9,5÷10 |
M1 | 6 | 7 | 9 | 11 |
M | 5.9 | 6.9 | 8.9 | 10.9 |
M2 | 6.8 | 8 | 10 | 12 |
X | 0.4 | 0.4 | 0.4 | 0.4 |
D | 5.9 | 6.9 | 8.9 | 10.9 |
