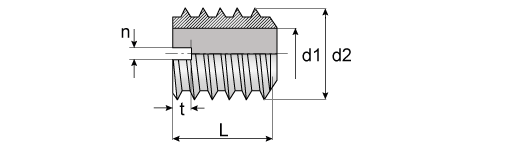

Screwed inserts for wood applications, without groove for chips, but with full internal thread
Screwed insert with
groove. For installation in wood. A thread insert with external wood
thread and internal continuous machine thread.
| d1 | M4 | M5 | M5 | M6 | M6 | M6 | M8 | M8 | M8 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| d2 | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 16 | 16 | 18.5 |
| L | 10 | 12 | 14 | 12 | 15 | 20 | 15 | 18 | 18 | 23 | 20 |
| t | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| n | 1.2 | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Ø | 6-6,5 | 8-8,5 | 8-8,5 | 10-10,5 | 10-10,5 | 10-10,5 | 12-12,5 | 12-12,5 | 13-13,5 | 13-13,5 | 15,5-16 |
