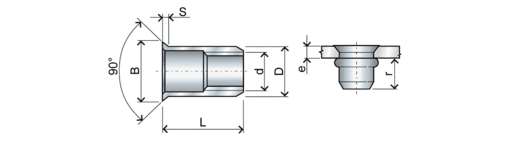

Steel threaded insert countersunk head
Countersunk head
| d 6H | M3 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|
| Finish | BZP | BZP/A2/ALU | BZP/A2/ALU | BZP/A2/ALU | BZP/A2/ALU | BZP/A2 |
| r max | 6.2 | 7,3/7,3/7,4 | 8,4/8,3/8,5 | 10,0/10,0/10,2 | 11,3/11,2/11,4 | 13,0 |
| hole Ø | 5 | 6 | 7 | 9 | 11 | 12/13 |
| D | 4.9 | 5.9 | 6.9 | 8.9 | 10.9 | 11,9/12,9 |
| B | 8 | 9 | 10 | 12 | 14 | 14/16 |
| S | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1,5 |
