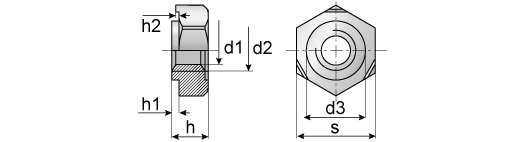

Hexagon weld nuts, DIN 929
| d1 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|---|---|
| d2 | 4.5 | 6 | 7 | 8 | 10.5 | 12.5 | 14.8 | 16.8 | 18.8 |
| d3 | 4.5 | 6 | 7 | 8 | 10.5 | 12.5 | 14.8 | 16.8 | 18.8 |
| drill | 4.5 | 6 | 7 | 8 | 10.5 | 12.5 | 14.8 | 16.8 | 18.8 |
| h1 | 0.55 | 0.65 | 0.7 | 0.75 | 0.9 | 1.15 | 1.4 | 1.8 | 1.8 |
| h2 | 0.25 | 0.35 | 0.4 | 0.4 | 0.5 | 0.65 | 0.8 | 1 | 1 |
| h | 3 | 3.5 | 4 | 5 | 6.5 | 8 | 10 | 11 | 13 |
| s | 7.5 | 9 | 10 | 11 | 14 | 17 | 19 | 22 | 24 |
