Hex nuts ~3d

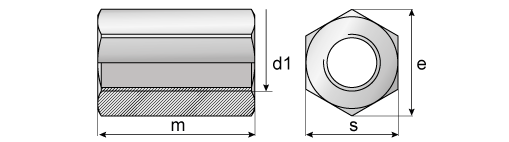

High hexagon nut suitable
for joining threaded rods.
Also often referred to as a joint nut or extension nut.
| d1 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|---|---|
| s | 8 | 10 | 11/13 | 13/17 | 17/19 | 24 | 30 | 36 | 46 | 55 |
| e | 8.79 | 11.05 | 15 | 19.6 | 21.9 | 27.7 | 34.6 | 41.6 | 53.1 | 63.5 |
