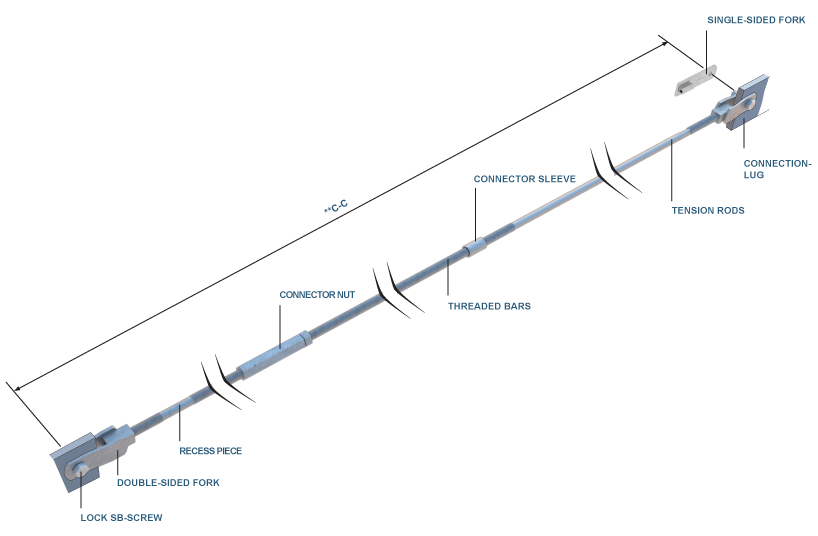

Component overview
ORDERING
When ordering a precut system, specify the **c-c mesaure between the centre holes on the forkheads.
|
Dimension
|
Elongation limit, N/mm2
|
Breaking force
*Nruk , kN |
Elongation force
*Nryk , kN |
|
M12
|
640
|
70
|
54
|
|
M16
|
640
|
130
|
100
|
|
M20
|
640
|
203
|
157
|
|
M24
|
640
|
293
|
226
|
|
M30
|
640
|
466
|
359
|
-
|
|
Recommended lock bolts for
|
||
|
Forkhead
|
Double-sided forkhead
|
Single-sided forkhead
|
|
|
|
EN 14399-4 SB 10.9 HDG
Incl. nut EN 14399-4 |
Lock bolt 8.8 CE
|
|
|
System dimensions
|
Dimensions
|
Dimensions
|
|
|
M12
|
-
|
M16
|
|
|
M16
|
M16x55
|
M20
|
|
|
M20
|
M20x65
|
M24
|
|
|
M24
|
M20x65
|
M30
|
|
|
M30
|
M27x80
|
-
|
|
*The values refer to the characteristic capacity of the rod. The system needs to be dimensioned according to Eurocode. For further information, contact our technical department.
