Welding studs shear connector SD, ISO 13918
ISO 13918, incl. ceramic ring
Material: S235J2 + C470

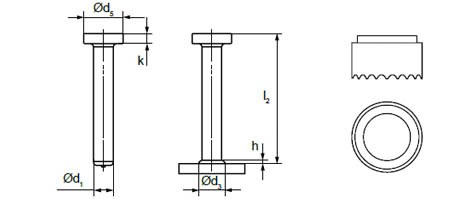

The technical drawing shows before and after welding.
|
d₁ |
d₅ |
k |
d₃ |
h |
|
10
|
19
|
7,1
|
13
|
2,25
|
|
13
|
25
|
8
|
17
|
3
|
|
16
|
32
|
8
|
21
|
4,5
|
|
19
|
32
|
10
|
29
|
6
|
|
22
|
35
|
10
|
29
|
6
|
|
25
|
41
|
12
|
31
|
7
|
| HIRE & SALE OF WELDED BOLTS WITH ACCESSORIES | Contact us on +46 303-20 67 00 WPQR documentation can be supplied by agreement |
