Self-cutting threaded inserts Type 302
Thread insert with
groove to create a metric internal thread. The insert is self-cutting which
facilitates installation.
The product is adapted for fixing in plastic, wood, cast iron, laminate and
light metal alloys.

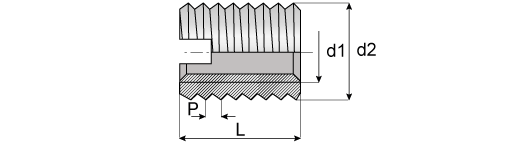

| d1 | M2 | M2,5 | M3 | M3,5 | M4 | M5 | M6 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.5 | 0.5 | 0.75 | 0.75 | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| d2 | 4.5 | 4.5 | 5 | 6 | 6.5 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | 20 | 26 | 30 |
| L | 6 | 6 | 6 | 8 | 8 | 10 | 12 | 14 | 15 | 18 | 22 | 24 | 22 | 27 | 30 |
