Square thin nuts, DIN 562
Metric low square nut
DIN 562 in dimensions from M2 to M10.
Available as zinc-plated, stainless and acid-resistant.

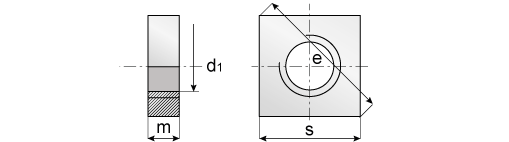

| d1 | M2 | M2,5 | M3 | M3,5 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|
| e | 5 | 6.3 | 7 | 7.6 | 8.9 | 10.2 | 12.7 | 16.5 | 21.5 |
| s | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 17 |
| m | 1.2 | 1.6 | 1.8 | 2 | 2.2 | 2.7 | 3.2 | 4 | 5 |
