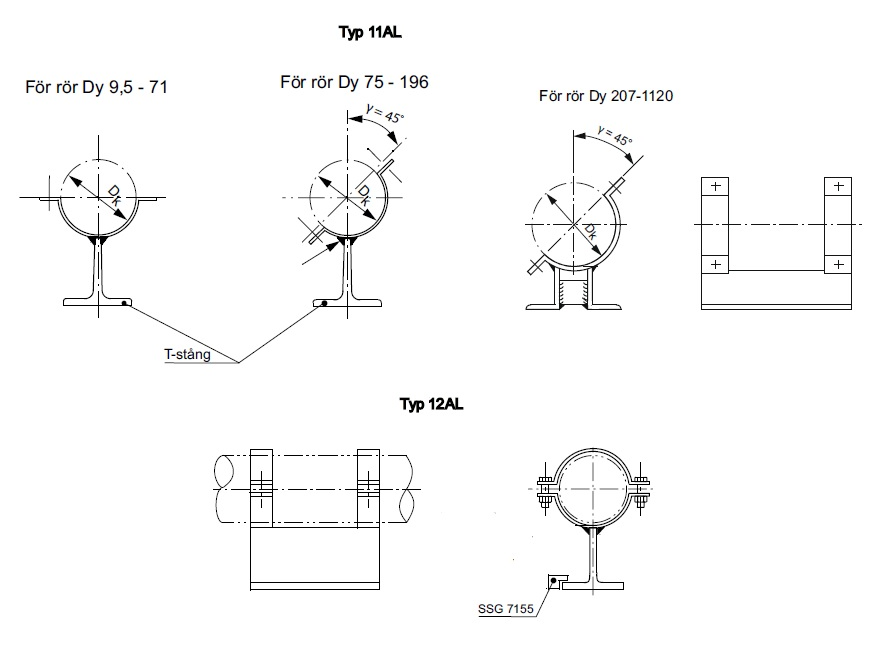

Sliding Support SSG type 11/12AL
SSG 7149 Type 11AL Sliding Support
Sliding support for uninsulated, protective insulated, and insulated pipelines with max 80 mm insulation thickness
Designation: SSG 7005 – Type and variant – Dk
Example: Type 11AL Dk 104
Note: 12AL delivered incl. 2 pcs slip-prevention guards 7155D UNTREATED
| ID (Inner Diameter) | Type 11AL – Available on request | Type 12AL – Available on request |
|---|---|---|
| 14 | x | x |
| 16 | x | x |
| 18 | x | x |
| 20 | x | x |
| 22 | x | x |
| 26 | x | x |
| 28 | x | x |
| 31 | x | x |
| 33 | x | x |
| 35 | x | x |
| 39 | x | x |
| 43 | x | x |
| 45 | x | x |
| 49 | x | x |
| 52 | x | x |
| 56 | x | x |
| 61 | x | x |
| 64 | x | x |
| 71 | x | x |
| 77 | x | x |
| 84 | x | x |
| 90 | x | x |
| 104 | x | x |
| 110 | x | x |
| 115 | x | x |
| 120 | x | x |
| 133 | x | x |
| 141 | x | x |
| 157 | x | x |
| 162 | x | x |
| 170 | x | x |
| 180 | x | x |
| 196 | x | x |
| 207 | x | x |
| 222 | x | x |
| 247 | x | x |
| 257 | x | x |
| 276 | x | x |
| 308 | x | x |
| 327 | x | x |
| 359 | x | x |
| 378 | x | x |
| 410 | x | x |
| 419 | x | x |
| 431 | x | x |
| 461 | x | x |
| 513 | x | x |
| 562 | x | x |
| 610 | x | x |
| 711 | x | x |
| 813 | x | x |
| 914 | x | x |
| 1,016 | x | x |
| 1,118 | x | x |
| 1,219 | x | x |
