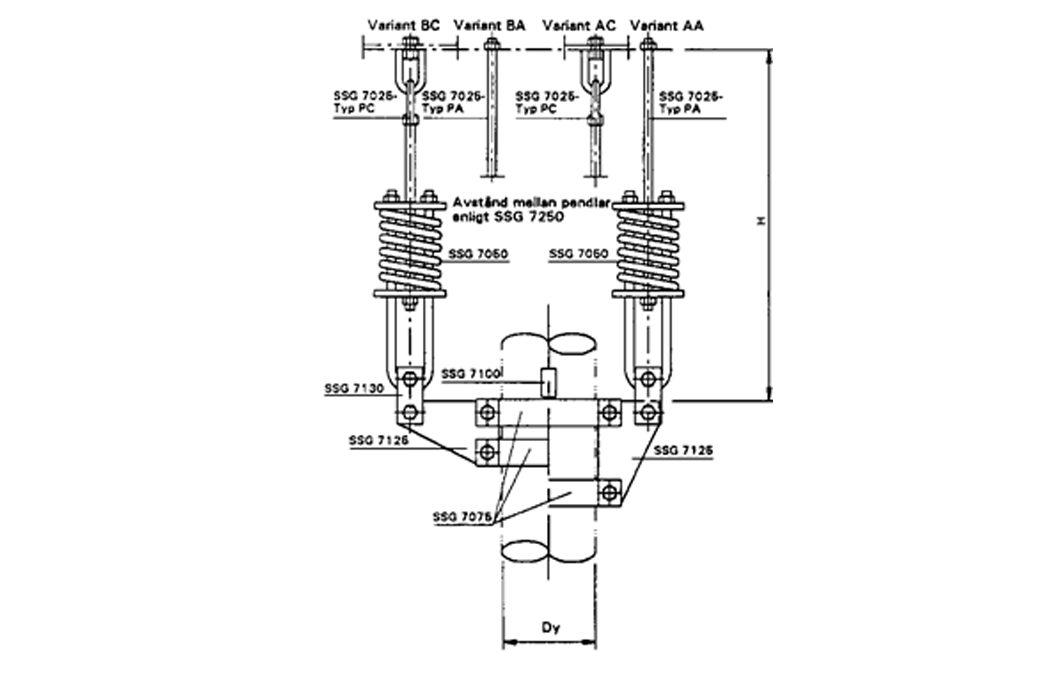

Pipe Hanger SSG Type 10

Designation: SSG 7005 – Type and variant – Dk – H – Spring Cage No – Stop Lug
SSG 7100 – Type – Material – Quantity
Example: SSG 7005 – Type 10AC Dk 327 H=1250 Nr 8 SSG 7100 A UNTREATED 4 pcs
Note: SSG7100 must be welded to the pipe—quality is important
If H is not specified, 2 pcs of two-meter threaded rods are delivered
Spring cage is calculated using table SSG7050
Spring size must always be specified when ordering.
