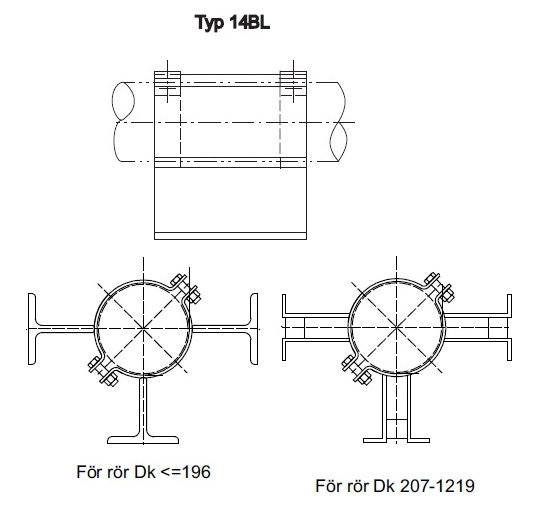

Guide SSG Type 14BL
SSG 7151 Type 14BL Guide
Guide for insulated pipelines
Designation: SSG 7005 – Type and variant – Dk
Example: Type 14BL Dk 114
Note: Long sliding support with 2 clamps
| ID (Inner Diameter) | Available on request |
|---|---|
| 31 | x |
| 33 | x |
| 35 | x |
| 39 | x |
| 43 | x |
| 45 | x |
| 49 | x |
| 52 | x |
| 56 | x |
| 61 | x |
| 64 | x |
| 71 | x |
| 77 | x |
| 84 | x |
| 90 | x |
| 104 | x |
| 110 | x |
| 115 | x |
| 120 | x |
| 133 | x |
| 141 | x |
| 157 | x |
| 162 | x |
| 170 | x |
| 196 | x |
| 207 | x |
| 222 | x |
| 247 | x |
| 257 | x |
| 276 | x |
| 308 | x |
| 327 | x |
| 359 | x |
| 378 | x |
| 410 | x |
| 419 | x |
| 431 | x |
| 461 | x |
| 513 | x |
| 562 | x |
| 610 | x |
| 711 | x |
| 813 | x |
| 914 | x |
| 1,016 | x |
| 1,118 | x |
| 1,219 | x |
