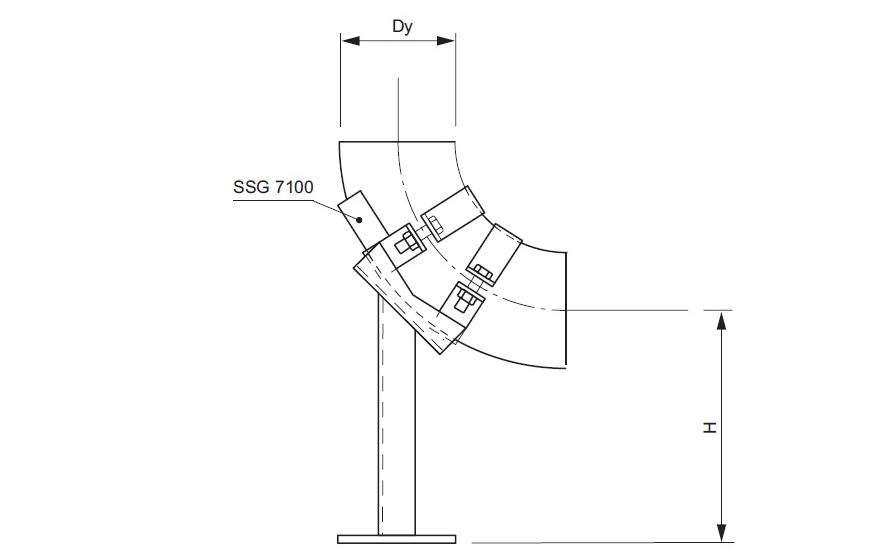

Elbow Support SSG Type 32

SSG 7178 Type 32 Bend Support
Designation: SSG 7005 – Type and variant – Dk – H – Stop Lug
SSG 7100 – Type – Material – Quantity

Example: SSG 7005 – Type32A Dk222 H=500 7100B S235JRG2 4 pcs

Note: H must be specified for each support
SSG 7100 must be welded to the pipe—quality is important
Type A: Support for stainless steel pipe bends SSG 1362
Type B: Support for steel pipe bends SMS 2063
Type C: Support for steel pipe bends SMS 2064
