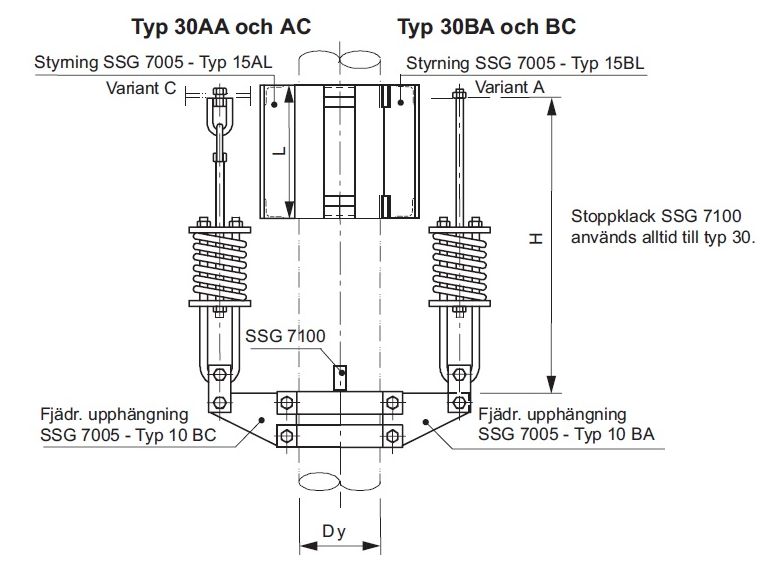

Spring-Loaded Guide SSG Type 30

Designation: SSG 7005 – Type and variant – Dk – H – Spring Cage No – Stop Lug
SSG 7100 – Type – Material – Quantity

Example: SSG 7005 – Type30BA Dk222 H=1130 NR 8 SSG 7100 A 1.4404 2 pcs

Note: If H is not specified, 2 pcs of two-meter threaded rods are delivered
Spring cage is calculated using table SSG7050
SSG 7100 must be welded to the pipe—quality is important
30AA & AC with guide 15AL for uninsulated pipes or protective insulation max 80 mm
30BA & BC with guide 15BL for insulated pipes

Spring size must always be specified when ordering.
