Spring-Loaded Guides SSG Type 17
Designation: SSG 7005 – Type and variant – Dk – H – Spring Cage No
Example: SSG 7005 – Type 17B Dk 378 H=1550 NR 14
Note: If H is not specified, 2 pcs of two-meter threaded rods are delivered
Spring cage is calculated using table SSG7050

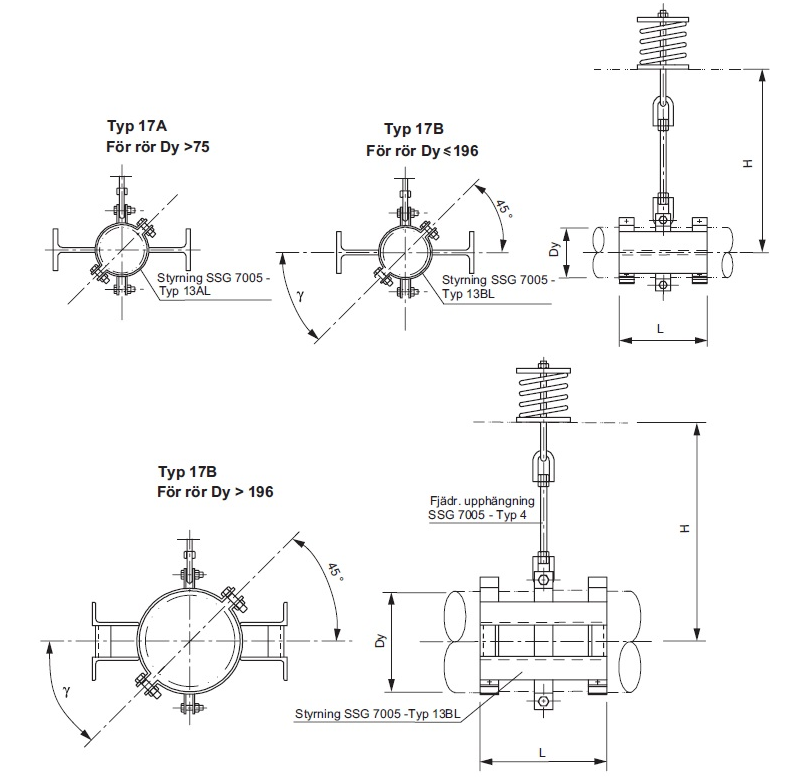

17A with guide 13AL for uninsulated pipes or protective insulation max 80 mm
17B with guide 13BL for insulated pipes
Spring size must always be specified when ordering.
| ID (Inner Diameter) | Type 17A – Available on request | Type 17B – Available on request |
|---|---|---|
| 43 | x | x |
| 45 | x | x |
| 49 | x | x |
| 52 | x | x |
| 56 | x | x |
| 61 | x | x |
| 64 | x | x |
| 71 | x | x |
| 77 | x | x |
| 84 | x | x |
| 90 | x | x |
| 104 | x | x |
| 110 | x | x |
| 115 | x | x |
| 120 | x | x |
| 133 | x | x |
| 141 | x | x |
| 157 | x | x |
| 162 | x | x |
| 170 | x | x |
| 196 | x | x |
| 207 | x | x |
| 222 | x | x |
| 247 | x | x |
| 257 | x | x |
| 276 | x | x |
| 308 | x | x |
| 327 | x | x |
| 359 | x | x |
| 378 | x | x |
| 410 | x | x |
| 419 | x | x |
| 431 | x | x |
| 461 | x | x |
| 513 | x | x |
| 562 | x | x |
| 610 | x | x |
| 711 | x | x |
| 813 | x | x |
| 914 | x | x |
| 1,016 | x | x |
| 1,118 | x | x |
| 1,219 | x | x |
